Render Object

Every Toolbag scene includes a Render object accessible in the Scene window. This is a permanent, undeletable object that contains the options to enable your rendering mode of choice, adjust each renderer’s settings, and set up your output options for final render.

Lighting #

The Lighting section of the Render object is where you will enable your renderer of choice to be used in both the Viewport and for final render image and video outputs. Toolbag currently supports two rendering modes: real-time Raster (default) and interactive Ray Tracing.

Ray Tracing #

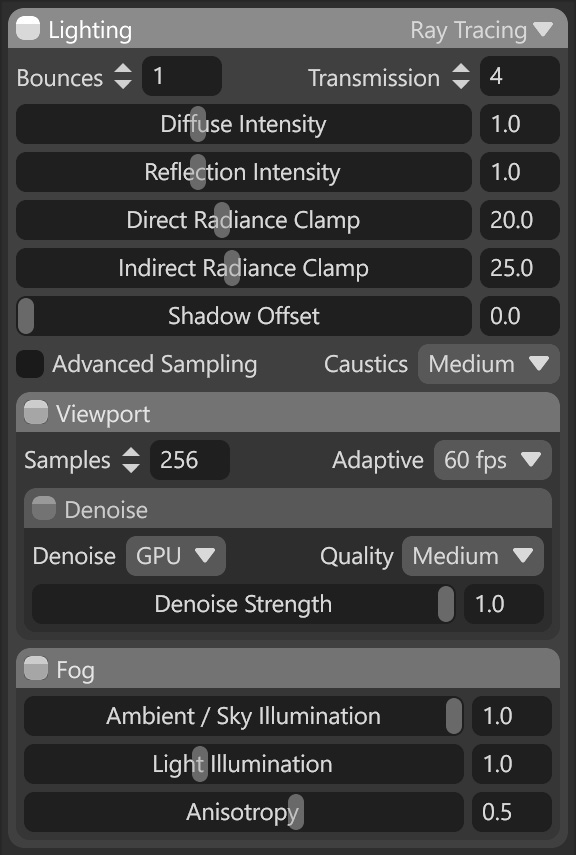

Ray Tracing is a rendering technique that simulates how light interacts with objects to create realistic and accurate images. It traces the path of light rays as they bounce off surfaces and interact with materials to create shadows, reflections, and refractions.

By simulating the behavior of light rays, ray tracing produces visually stunning and physically accurate results, enhancing the overall visual fidelity of rendered scenes.

Each new scene includes a Render object by default in the Scene hierarchy.

Setting	Description
Use Ray Tracing	Enables path-traced global illumination, which simulates light bounces between objects in a scene.
Caustics	Quality of the caustic paths that produce bright highlights due to illumination bounced off nearby specular surfaces. Higher-quality caustics may require a greater number of samples to converge.
Advanced Light Sampling	Reduces noise in scenes with many lights. Has a moderate impact on render time and viewport performance.
Bounces	Number of indirect light bounces to trace.
Transmission	Number of transmission light bounces to trace. Increasing this value might help if transmissive objects appear too dark. Note: Higher values are recommended if creating realistic refractive materials in your scene, i.e. diamonds, glass, etc…
Direct Radiance Clamp	Maximum allowed sample direct radiance. Decreasing this value can reduce fireflies, but when set too low, it negatively impacts lighting quality.
Indirect Radiance Clamp	Maximum allowed sample indirect radiance. Decreasing this value can reduce fireflies, but when set too low, it negatively impacts lighting quality.
Diffuse Intensity	Intensity of diffuse indirect lighting.
Reflection Intensity	Intensity of reflected indirect lighting.

Viewport

The Viewport section of ray-traced render settings allows you to adjust the number of render frames and the rays per frame to increase or decrease the rendering quality in the viewport.

Note: These settings also impact the rendering speed and performance. Higher values will result in longer rendering processing times and increased performance demands.

Setting	Description
Samples	Progressively improves viewport preview quality by accumulating frames over time.
Rays Per Pixel	Computes more rays with each sample during the viewport preview. This can reduce noise in the viewport more rapidly but incurs a significant performance cost.

Denoise Settings

Denoising is a rendering process that helps reduce noise or graininess over a number of frames as light rays accumulate. It uses advanced algorithms to analyze and smooth out pixel-level variations, resulting in cleaner and more visually appealing final images. The Denoise settings are particularly useful for optimizing render times and achieving high-quality results without requiring extensive rendering iterations.

Setting	Description
Denoise	Noise reduction mode in the viewport preview. GPU mode requires a supported NVIDIA graphics adapter.
Quality	Noise reduction quality level in the viewport preview.
Denoise Strength	Applies noise reduction in the viewport preview, once several frames have accumulated.
Real-Time	Enables the interactive denoiser in the viewport preview, where frames accumulate in real time.
Fade	Smoothly fade in denoise result.
Start At	Accumulation frame real-time denoising should start at. A value of 1 starts immediately.

Raster #

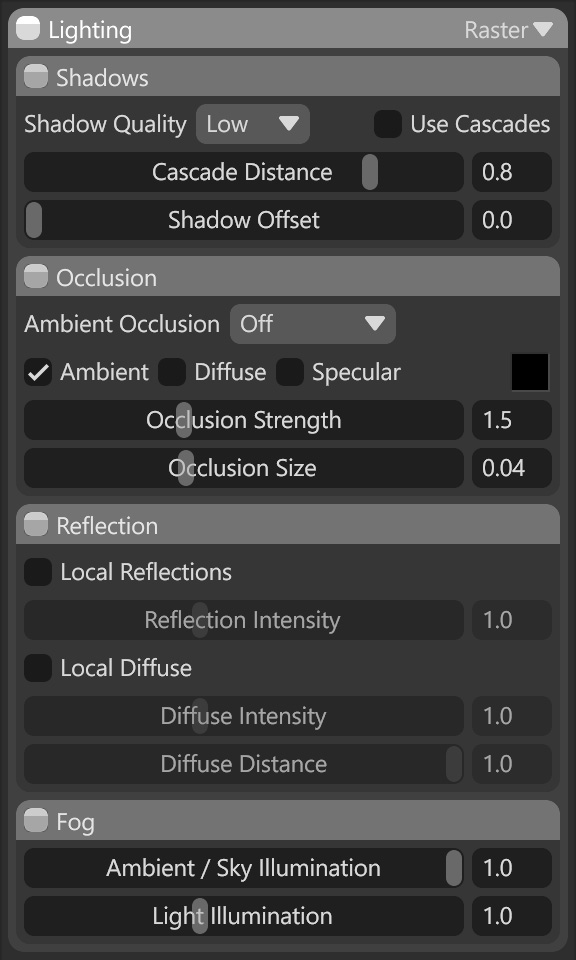

Raster rendering is a rendering mode that balances speed and visual quality. It’s good for quick previews and smooth interactive experiences. While not as physically accurate as ray tracing, it is ideal for scenarios where interactivity and efficiency are paramount.

Shadows

In this section, you can adjust shadow quality settings and enable or disable cascade shadows.

Setting	Description
Shadow Quality	Controls the resolution of all shadow maps for improved detail and precision. Higher settings have an adverse effect on performance.
Use Cascades	Enables cascading shadows for higher-quality directional lights in large scenes.
Cascade Distance	Adjusts how much texture detail is devoted to the near and far areas. Higher values mean more shadow detail for near objects, which is generally good for close-ups. Lower values mean a more even distribution of detail, which is generally good for wider shots.

Occlusion

Ambient Occlusion (AO) is a post-processing effect that approximates self-shadowing and light occlusion in the cracks and crevices of adjacent surfaces. There are three options to select from to control AO in raster rendering mode:

1. Off: No ambient occlusion is generated.
2. Screen: This enables screen-spaced AO in your viewports, a simple and performant method of AO generation useful for fast previews and classic game-style renders.
3. Ray Tracing: Enables complex and more physically correct occlusion, useful for achieving the highest quality shadows without enabling the full Ray Tracing render mode.

Setting	Description
Ambient Occlusion	Enables an inter-object light occlusion approximation. This effect only applies to raster renders.
Ambient	The occlusion effect darkens diffuse light from the sky background.
Diffuse	The occlusion effect darkens diffuse light from all sources. This setting overrides the Ambient option.
Specular	The occlusion effect darkens specular light. The occlusion color hue is not used for specular occlusion.
AO Color	Sets the color of the ambient occlusion effect.
Occlusion Strength	Sets the intensity of the ambient occlusion effect.
Occlusion Size (SSAO)	Sets the spread of the ambient occlusion effect.
Ray Traced Distance (Ray Traced AO)	Sets the spread of the ambient occlusion effect.
Ray Distance (Ray Traced AO)	Controls the ambient occlusion ray length.

Reflection

In this section, you can adjust local reflection rendering options, which are very useful to achieve more realism in your final render while using Raster rendering mode.

Setting	Description
Local Reflections	Enables an inter-object light occlusion approximation. This effect only applies to raster renders.
Reflection Intensity	Adjusts the brightness of local reflections.
Local Diffuse	Enables an approximation of diffuse light scattering between objects. This effect only applies to raster renders.
Diffuse Intensity	Adjusts the brightness of local diffuse light.
Diffuse Distance	Adjusts the falloff length of local diffuse light. This value is not in scene units but rather a ratio with camera distance.

Common

This section contains additional settings that relate to both Raster and Ray Tracing render modes.

Setting	Description
Shadow Offset	Adds a small spatial offset between shadows and shadow casters. This can be useful for tweaking shadow artifacts in difficult cases.

Output #

Toolbag allows you to render images and videos in a variety of formats. You can choose what to render through the Render settings.

Image #

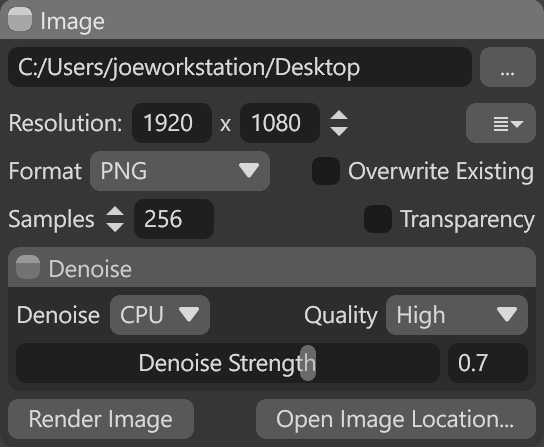

This section allows you to set up the image output settings.

Setting	Description
Output Path	The location to which rendered images will be written. Specify either a directory or file name.
Browse	Browse for a file location for saving images.
Resolution	Sets the width and height of the exported image in pixels.
Resolution Presets	Select from a variety of resolution presets.
Format	Selects the file type of the exported image.
Overwrite Existing	Overwrites existing files with new renders. If this option is disabled, new renders will be given numbered file names.
Samples	Sets the number of render samples per pixel. Higher values improve image quality but take longer to render.
Transparency	Saves a transparency mask into the alpha channel of the exported image (where supported).

Denoise

This section allows you to set up denoise for output images, which is useful for decreasing the noise of rendered images without adding extra samples.

Setting	Description
Denoise	Noise reduction mode. GPU mode requires a supported NVIDIA graphics adapter.
Quality	Noise reduction quality level.
Denoise Strength	Performs noise reduction in the final image or video frame. This setting only takes effect with ray-traced renders.

Render Image

After everything is set up, you can render the image.

Setting	Description
Render Image	Generate and save the final image to disk.
Open Image Location	Open the folder where the image is saved.

Video #

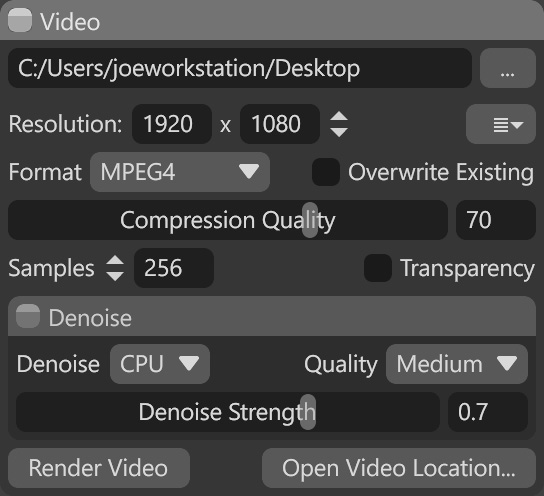

In this section, you can set the video output settings.

Setting	Description
Output Path	The location to which rendered animations will be written. Specify either a directory or file name.
Browse	Browse for a file location for saving animations.
Resolution	Sets the width and height of the exported animations, in pixels.
Resolution Presets	Select from a variety of resolution presets.
Format	Selects an output format for the animation. Sequence formats will write a series of still images instead of a single video file.
Overwrite Existing	Overwrites existing files with new renders. If this option is disabled, new renders will be given numbered file names.
Compression Quality	Video image quality (applies only to compressed video). Higher values will produce larger files that look better.
Samples	Sets the number of render samples per pixel. Higher values improve image quality but take longer to render.
Transparency	Saves a transparency mask into the alpha channel of the exported image sequence. This is not supported with video files.

Denoise

This section allows you to set up denoise for video output, which is useful for decreasing the noise of the rendered videos without adding extra samples.

Setting	Description
Denoise	Noise reduction mode. GPU mode requires a supported NVIDIA graphics adapter.
Quality	Noise reduction quality level.
Denoise Strength	Performs noise reduction in the final image or video frame. This setting only takes effect with ray-traced renders.

Render Video

After ensuring your video settings are ready, you can render the video.

Setting	Description
Render Video	Generate and save the final video to disk.
Open Video Location	Open the folder where the video is saved.

Render Cameras #

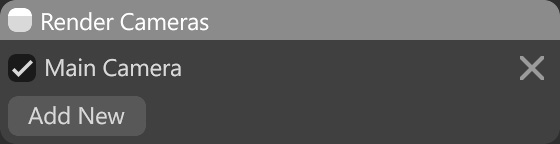

You can initiate a batch rendering process of multiple cameras under the Render Cameras menu. Add and enable the cameras you want to render, then begin the rendering process.

Setting	Description
Enable Camera	Enable or disable this camera when rendering screenshots/videos.
Delete Camera	Remove this render camera.
Add Camera	Create a new camera in the scene and add it to this list.

Render Passes #

Toolbag also allows rendering Render Passes, which can be useful for further image editing or compositing. They help isolate the geometry and specific components from other rendering elements for later adjustments and correction in post-processing.

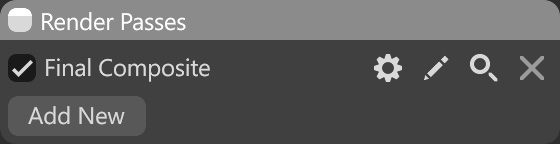

The following image and table is an example of your default Render Passes setup and the options available per render pass.

Setting	Description
Final Composite	Default render pass.
Add New	Add an additional render pass for your render Outputs. Note: Once you add a render pass, it will disappear from the Add New list.
Parameters ⚙️	Adjust the extra parameters for this render pass.
Open Last Render ✏️	Opens the last render saved to disk.
Preview 🔎	Preview Preview the last render saved to disk.
Remove ❌	Remove this render pass.

Common Render Passes

Render Pass	Description
Final Composite	Renders the final, fully-lit and composited image based on your enabled render mode, render settings, and selected camera settings. You can apply the mesh’s wireframe on top of the render. – Wireframe – Controls the intensity of the wireframe effect. – Wireframe Color – Sets the color of the wireframe effect.
Wireframe	Renders only the wireframe view of the meshes. The render will be black if there are no meshes in the camera view. – Wireframe – Controls the intensity of the wireframe effect. – Wireframe Color – Sets the color of the wireframe effect. – Cull Wireframe – Show backfaces when rendering wireframes.

Geometry Passes

A Geometry render pass focuses on rendering a scene’s geometric information, such as the normals, positions of objects, or depth of a scene.

Render Pass	Description
Alpha Mask	Renders the black and white mask of the objects in the scene where the background is black and the objects are white.
Depth	Renders a depth mask of a scene.  Normalization – The method by which depth values will be normalized. Dither – Determines whether or not to use the dither noise to smooth the gradient.
Incidence	Renders a scene with applied shading to our models according to the angle formed between the camera and the surface normal.
Normals	Renders the normals of the objects in a scene. Mode – The target space (object, tangent, or view) to visualize normals. Flip X, Y, Z – Inverts normals on the X, Y, or Z axis, which means the Red, Green, or blue channel.
Position	Renders the position of the objects in a scene. Normalization – The method by which depth values will be normalized. Dither – Determines whether or not to use the dither noise to smooth the gradient.

IDs Passes

ID render passes assign unique color values to different objects or materials in the scene.

Render Pass	Description
Material ID	Renders all materials in a scene with unique colors.
Object ID	Renders all objects in a scene with unique colors.

Lighting Render Passes

Lighting render passes isolate the effect of various light sources and lighting effects applied to the scene.

Render Pass	Description
Ambient Occlusion	Renders only the ambient occlusion detail of the scene.
Lighting (Direct)	Renders a combination of diffuse and specular lighting that directly hits the objects in a scene. Direct – Light that hits the object directly. Indirect – Light that bounces (global illumination etc.). Complete – A combination of direct & indirect lighting. Diffuse – Diffuse lighting only. Specular – Specular lighting only. Lighting – A combination of diffuse and specular lighting.
Lighting (Indirect)	Renders a combination of diffuse & specular lighting that bounces from the objects in a scene (global illumination etc.).
Diffuse (Complete)	Renders all diffuse lighting that bounces from objects and hits the objects directly.
Diffuse (Direct)	Renders diffuse lighting that directly hits objects in a scene.
Diffuse (Indirect)	Renders diffuse lighting that bounces from the objects in a scene (global illumination, etc.).
Specular (Complete)	Renders all specular lighting, that bounces from the objects (global illumination, etc.) and hits the objects directly.
Specular (Direct)	Renders specular lighting that hits the objects in a scene directly.
Specular (Indirect)	Renders specular lighting that bounces from the objects in a scene (global illumination, etc.).

Material Value Passes

A Material Values render pass focuses on rendering material-specific properties, such as albedo, roughness, specular, and other material attributes.

Setting	Description
Albedo	Renders the albedo data from the objects in a scene. Energy Conservation – Considers an object’s reflectivity in albedo calculation, showing the raw albedo value fed to lighting calculation.
Emissive	Renders the emissive data from the objects in a scene.
Gloss	Renders the gloss data from the objects in a scene.
Metalness	Renders the metalness data from the objects in a scene.
Reflectivity	Renders the reflectivity data from the objects in a scene.
Roughness	Renders the roughness data from the objects in a scene.
Transparency	Renders the transparency data from the objects in a scene.

Watermark #

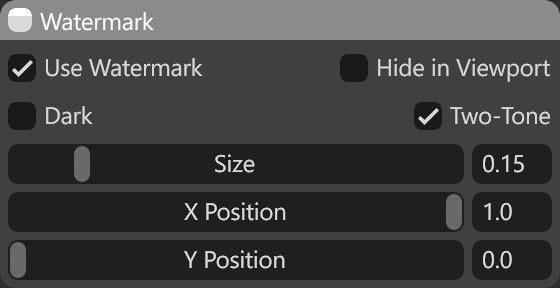

This section lets you add Toolbag’s watermark to your render and adjust its appearance.

Note: If you are using the trial version of Toolbag, you can’t disable this option.

Setting	Description
Use Watermark	Sets whether the ‘Rendered in Marmoset Toolbag’ watermark is displayed.
Hide in Viewport	Sets whether the ‘Rendered in Marmoset Toolbag’ watermark is hidden in the viewport. If “Use Watermark” is enabled the watermark will still be applied to the exported image.
Dark	Determines whether to use the light or dark watermark image. The dark watermark image provides better readability with bright scenes.
Two-Tone	Sets whether the ‘Rendered in Marmoset Toolbag’ watermark is hidden in the viewport. If “Use Watermark” is enabled, the watermark will still be applied to the exported image.
Size	Controls how large the watermark appears.
X Position	Sets the horizontal position of the watermark.
Y Position	Sets the vertical position of the watermark.
